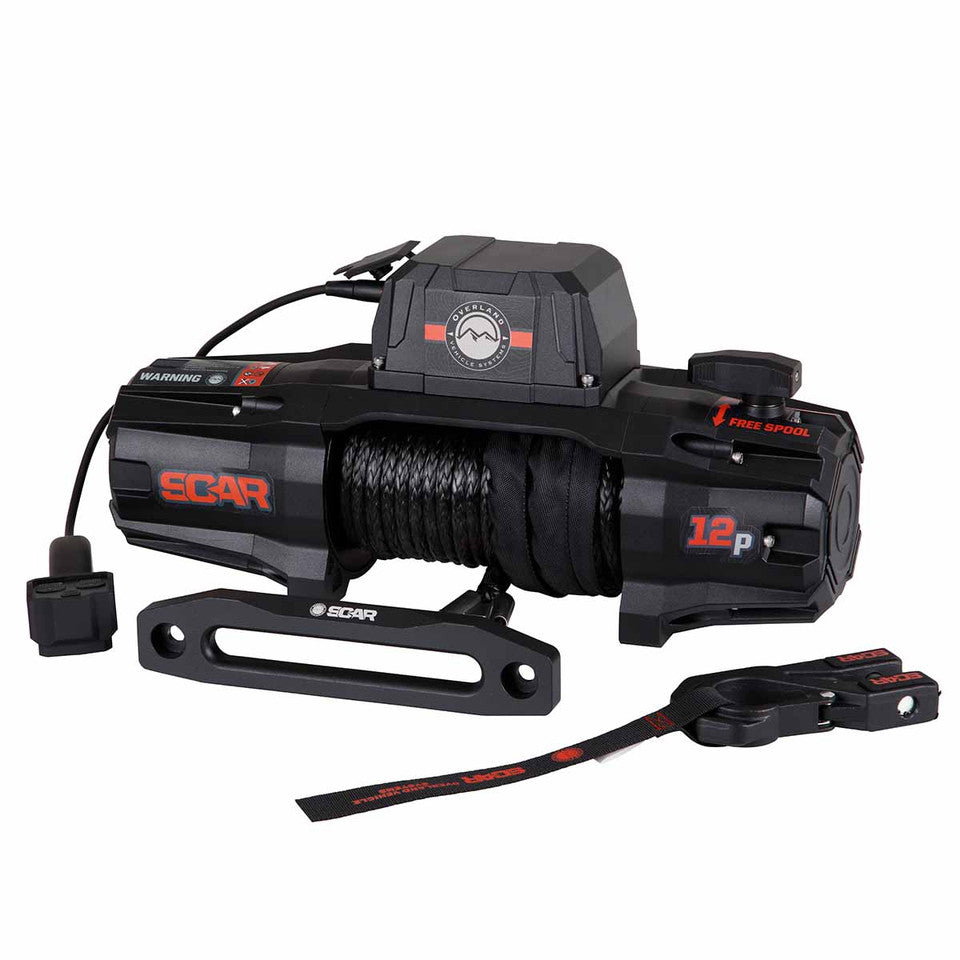

Scar 12K - Overland Vehicle Systems Winch W/ Synthetic Rope & Wireless Remote 10.0 Winch

Overland Vehicle Systems S.C.A.R. 12K Winch with Synthetic Rope Specifications

• Single Line Rated Pull: 12,000lb
• Motor: 6.5 hp Series Wound
• Waterproof: IP68 Rated
• Voltage: 12V
• Control: Wireless Remote w. 11.5’ Lead with Built in Alkaline LR23A Battery
• Gear Train: 3 Stage Planetary Gear Systems with Ring Gear
• Gear Ratio: 218:1
• DB Output: Low
• Clutch: Rotating Ring Gear
• Braking Action: Automatic Out-Of-Drum
• Drum Size: 2.5” x 8.8”
• Mounting Bolt Pattern: 10” x 4.5”
• Overall Dimensions: 21.3” L x 6.3” W x 6.5” H (10" Tall with Solenoid)
• Line Speed: 42’ Per Minute
• Synthetic Line: 3/8” x 85’
• Hook: Heavy Duty with Clip
• Fairlead: Aluminum Hawse Fairlead
• Electric Cable: 70” x 25 mm2
• Solenoid: 500A (Heavy – Duty)
• Recommended Battery: 650CCA Minimum.
• Weight: 66 lbs
• Warranty: Limited Lifetime Warranty Mechanical, 7 Year Electrical
